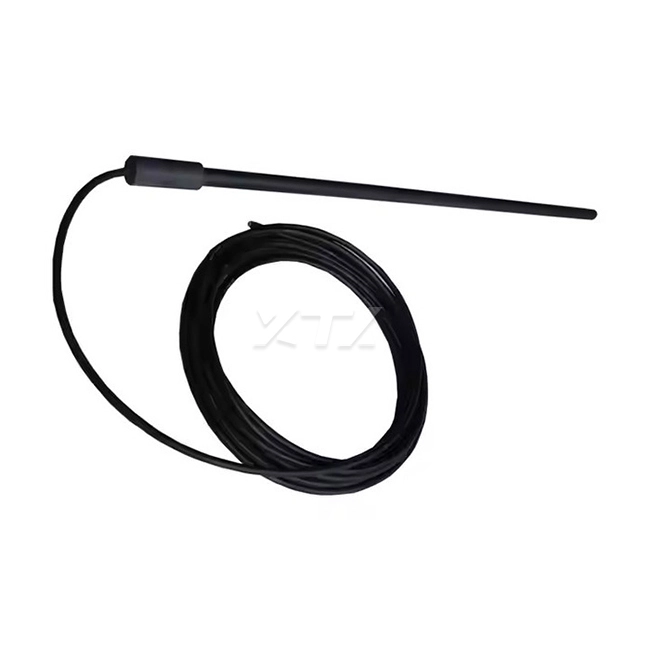

MMO Auxiliary Anode for Cathodic Protection
ASTM B348 Gr1 pure titanium rod (applicable to rod anode)
ASTM B338 Gr1 pure titanium tube (applicable to tubular anode)
MMO strip anode: thickness: 0.635mm
width: 6.35mm / 12.7mm / 25.4mm
length: customizable (usually 100m / roll) MMO rod anode: diameter: 6.35mm / 12.7mm / 16mm
length: 0.5m - 1.5m MMO tubular anode: diameter: 19mm / 25mm / 32mm
wall thickness: 0.9mm - 1.2mm
length: 500mm - 1500mm MMO mesh anode: mesh size: 6.35mm × 3.18mm / 12.7mm × 6.35mm
thickness: 1.0mm - 1.2mm MMO Disc Anode: Diameter: 25mm / 50mm / 75mm
Thickness: 3mm - 5mm MMO Linear Anode: Diameter: 1.0mm - 3.0mm
Length: Customizable Coating: Ru-Ir or Ir-Ta MMO Design Life 15-50 Years
Current Output Density 10-100 mA/m²
Working Environment pH 1 - 12
Corrosion Resistance High Chloride Ion Corrosion Resistance
- Product Description
Baoji Xintailai Metal Co., Ltd.: Your Trusted MMO Auxiliary Anode for Cathodic Protection Manufacturer
Are you searching for high-quality MMO Auxiliary Anodes for Cathodic Protection? Look no further than Baoji Xintailai Metal Co., Ltd. We are a leading manufacturer and supplier of MMO Auxiliary Anodes for Cathodic Protection, offering superior products backed by our professional R&D team and advanced production facilities. Our commitment to quality and customer satisfaction sets us apart in the industry.
Product Introduction
Our MMO Auxiliary Anodes for Cathodic Protection are designed to provide exceptional corrosion protection for a wide range of industrial applications. These anodes are crafted using a mixed metal oxide coating on a titanium substrate, offering superior durability and performance in even the harshest environments.
Product Specifications
| Specification | Details |
|---|---|
| Base Material | Titanium Grade 1 or 2 |
| Coating | Mixed Metal Oxide (IrO2-Ta2O5) |
| Dimensions | Customizable (standard sizes available) |
| Current Capacity | Up to 600 A/m² |
| Design Life | 20+ years |
| Operating Temperature | -10°C to 65°C |
| pH Range | 6.5 to 8.5 |
Product Features
- High current output capacity
- Extended service life
- Excellent chemical stability
- Low consumption rate
- Uniform current distribution
- Customizable shapes and sizes
- Resistant to chlorine evolution
Product Advantages
- Superior corrosion resistance
- Cost-effective long-term protection
- Reduced maintenance requirements
- Environmentally friendly operation
- Compatibility with various cathodic protection systems
- Consistent performance in diverse environments
Product Application Industries
Our MMO Auxiliary Anodes for Cathodic Protection find extensive use across various sectors:
- Oil & Gas: Protecting pipelines, storage tanks, and offshore platforms
- Maritime: Safeguarding ship hulls, port structures, and marine installations
- Water Treatment: Preserving water storage tanks, desalination plants, and distribution systems
- Infrastructure: Protecting bridges, tunnels, and reinforced concrete structures
- Power Generation: Safeguarding cooling water systems and power plant equipment
- Chemical Processing: Protecting storage tanks, pipelines, and processing equipment
- Mining: Preserving ore processing equipment and tailings ponds
Product Manufacturing Process
Our state-of-the-art manufacturing process ensures consistent quality:
- Titanium substrate preparation and cleaning
- Application of proprietary mixed metal oxide coating
- Precision thermal treatment for optimal coating adhesion
- Rigorous quality control and performance testing
- Final inspection and packaging for shipment
OEM Service
We offer customized OEM solutions to meet your specific requirements:
- Tailored anode designs for unique applications
- Flexible production quantities to suit your project needs
- Collaborative engineering support for optimal system integration
- Comprehensive documentation and certifications
FAQ
Q: What is the typical lifespan of your MMO Auxiliary Anodes?
A: Our anodes are designed to last 20+ years under normal operating conditions.
Q: Can you provide rush orders for urgent projects?
A: Yes, we offer expedited production and shipping for time-sensitive requirements.
Q: Do you provide technical support for installation and maintenance?
A: Absolutely. Our team of experts is available to assist you throughout the product lifecycle.
Contact Us
Ready to enhance your cathodic protection system with our high-performance MMO Auxiliary Anodes for Cathodic Protection? Contact us today!
Tel & WhatsApp: +86-15319223116 / +8613335492266
Email: [email protected]
Address: Guojia Village Industrial Park, Maying Town, High-tech Development Zone, Baoji City, Shaanxi Province, China
Choose Baoji Xintailai Metal Co., Ltd. for unparalleled quality, expertise, and customer service in MMO Auxiliary Anodes for Cathodic Protection. Let us help you safeguard your valuable assets against corrosion with our cutting-edge solutions.
