Gr1 titanium flange
Process Push, press, forge, cast, etc
Diameter Range DN15-DN2000
Standard ASME,JIS, DIN , HG, etc
Size DN10~DN2000, customized size as drawing
Pressure Range PN6 – PN150
Pressure Rate 2000LB, 3000LB, 6000LB, 9000LB
Other Special design is available
- Product Description

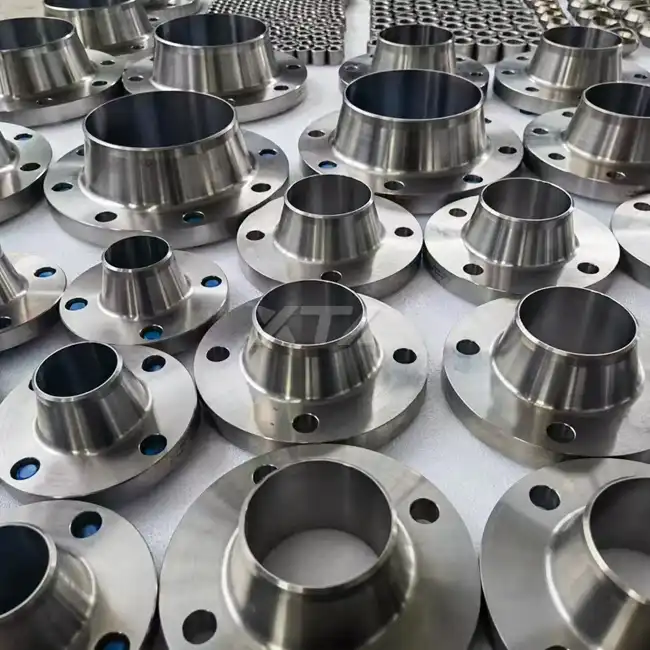

Gr1 Titanium Flange: Unmatched Durability for Extreme Environments
Welcome to Baoji Xintailai Metal Co., Ltd., your trusted manufacturer and supplier of high-quality Gr1 titanium flange products. Our state-of-the-art facilities and expert team ensure superior flanges that meet the most demanding industrial requirements. With our commitment to excellence and customer satisfaction, we deliver product solutions that outperform in corrosive and high-stress applications.
Product Introduction
Our product is the go-to choice for industries requiring exceptional corrosion resistance and strength. Crafted from Grade 1 titanium, known for its purity and formability, these flanges offer unparalleled performance in harsh environments. Whether you're in oil and gas, chemical processing, or marine engineering, our flanges provide the reliability and longevity your projects demand.
Product Specifications
| Specification | Details |
|---|---|
| Material | ASTM B381 Grade 1 Titanium |
| Flange Types | Slip-On, Weld Neck, Blind, Lap Joint, Socket Weld |
| Size Range | 1/2" to 24" (DN15 to DN600) |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Standards | ASME B16.5, ANSI, DIN, JIS |
| Surface Finish | 32-63 RMS (standard), Custom finishes available |
| Certifications | NACE MR0175, PED 2014/68/EU |
Product Features
- Exceptional corrosion resistance in seawater and chemical environments
- Low density (60% of steel) for weight-critical applications
- Excellent strength-to-weight ratio
- High ductility and formability
- Non-magnetic properties
- Wide temperature range performance (-253°C to 300°C)
- Superior biocompatibility for pharmaceutical applications
Product Advantages
- Extended equipment lifespan in corrosive settings
- Reduced maintenance and replacement costs
- Improved energy efficiency due to lighter weight
- Enhanced safety in high-pressure systems
- Compatibility with a wide range of chemicals and processes
- Resistance to stress corrosion cracking and pitting
Product Application Industries
Our Gr1 titanium flange finds critical applications across various sectors:
- Oil & Gas: Offshore platforms, subsea equipment, and pipeline systems
- Chemical Processing: Reactors, heat exchangers, and storage tanks
- Desalination Plants: Seawater handling systems and brine processing
- Aerospace: Fluid systems and lightweight structural components
- Marine Engineering: Shipbuilding, propulsion systems, and underwater vehicles
- Pharmaceutical: Sterile processing equipment and bioreactor systems
- Power Generation: Steam turbines and heat recovery systems
- Pulp & Paper: Bleaching equipment and chemical storage
Be used in a wide range of industries.
Chemical Processing
Marine Engineering
Medical Devices
Desalination Plants
Aerospace
Energy
Factory and Production Sites
 |  |  |  |  |
 |  |  |  |  |
Product Manufacturing Process
- Raw Material Selection: Sourcing high-purity Grade 1 titanium
- Forging: Shaping the titanium into rough flange forms
- Machining: Precision CNC turning and milling to achieve exact dimensions
- Heat Treatment: Stress relieving to enhance material properties
- Surface Finishing: Achieving required smoothness and corrosion resistance
- Quality Inspection: Rigorous testing including PMI, dimensional checks, and NDT
- Packaging: Protective wrapping and secure crating for safe transportation
OEM Service
At Baoji Xintailai Metal Co., Ltd., we offer comprehensive OEM services for the production:
- Custom design and engineering support
- Prototyping and small batch production
- Specialized coatings and surface treatments
- Non-standard sizes and configurations
- Material certification and full traceability
- Expedited manufacturing for urgent projects
FAQ
Q1: What makes products superior to stainless steel?
A1: The products offer better corrosion resistance, lighter weight, and higher strength-to-weight ratio compared to stainless steel, making them ideal for demanding environments.
Q2: Are your products compliant with international standards?
A2: Yes, our flanges comply with ASME B16.5, ASTM B381, and other relevant international standards, ensuring global compatibility and quality.
Q3: Can you provide custom product solutions?
A3: Absolutely. We specialize in custom flange manufacturing to meet your specific project requirements, including non-standard sizes and special configurations.
Q4: What is the typical lead time for product orders?
A4: Lead times vary based on specifications and quantity. Standard sizes are often available within 4-6 weeks, while custom orders may take 6-10 weeks.
Q5: Do you offer material certifications with your products?
A5: Yes, we provide comprehensive material certifications, including mill test reports and third-party inspections upon request.
