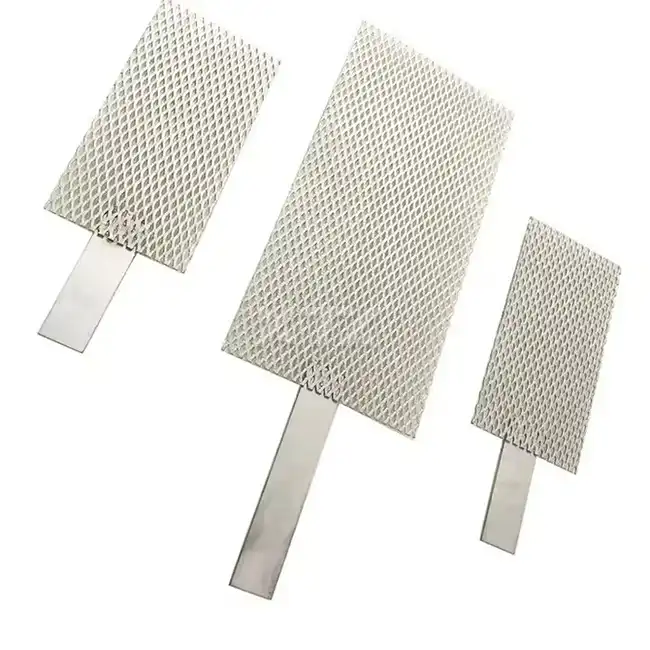

Platinum Plated Titanium Anode
Width: ≤ 1000mm
Length: ≤ 2000mm 0.5µm - 10µm Electrolysis, sodium hypochlorite generator, electroplating
Platinum-plated titanium rod anode: Diameter: 1mm - 25mm
Length: 50mm - 1500mm 0.5µm - 10µm Water treatment, electrolysis, cathodic protection
Platinum-plated titanium mesh anode: Mesh size: 3×6mm / 6×12mm / 12×25mm
Thickness: 1.0mm - 2.5mm 0.5µm - 10µm Reinforced concrete protection, electroplating, seawater electrolysis
Platinum-plated titanium tube anode: Outer diameter: 10mm - 50mm
Wall thickness: 0.5mm - 2.5mm
Length: 50mm - 1500mm 0.5µm - 10µm Seawater electrolysis, sodium hypochlorite generator
Platinum-coated titanium wire anode: Diameter: 0.5mm - 3.0mm
Length: customizable 0.5µm - 10µm Fine plating, electrolysis, cathodic protection Working current density 50-500 A/m²
Working environment pH 1 - 12
Oxidation potential 1.2V (vs. NHE)
Service life 5 - 20 years (depending on platinum plating thickness)
- Product Description
Platinum Plated Titanium Anode: Superior Performance for Electrochemical Applications
Welcome to Baoji Xintailai Metal Co., Ltd., your trusted manufacturer and supplier of high-quality 【Platinum Plated Titanium Anodes】. Our advanced production facilities, professional R&D team, and rigorous quality control processes ensure that we deliver top-tier electrochemical solutions to meet your industrial needs. With our expertise in titanium products and commitment to innovation, we offer 【Platinum Plated Titanium Anodes】 that excel in durability, conductivity, and corrosion resistance.
1. Product Introduction
Our 【Platinum Plated Titanium Anodes】 are precision-engineered for optimal performance in demanding electrochemical environments. These anodes combine the strength and lightweight properties of titanium with the exceptional catalytic activity of platinum, resulting in a superior electrode for various industrial applications. The platinum coating provides excellent conductivity and resistance to chemical attack, while the titanium substrate ensures structural integrity and longevity.
2. Product Specifications
| Specification | Details |
|---|---|
| Base Material | Grade 1 or Grade 2 Titanium |
| Coating | Platinum (Pt) |
| Platinum Layer Thickness | 2.5 - 7.5 µm (customizable) |
| Available Shapes | Plates, Mesh, Rods, Tubes |
| Dimensions | Customizable to client requirements |
| Surface Finish | Smooth or Textured |
| Operating Temperature | Up to 100°C (212°F) |
| pH Range | 0-14 |
| Lifetime | 5-10 years (application dependent) |
3. Product Features
- High catalytic activity due to platinum coating
- Excellent corrosion resistance in harsh chemical environments
- Low overpotential for efficient electrochemical reactions
- Uniform current distribution
- Long service life with minimal degradation
- Customizable shapes and sizes for various applications
- Lightweight yet durable titanium substrate
4. Product Advantages
- Enhanced electrocatalytic performance compared to traditional anodes
- Reduced energy consumption in electrochemical processes
- Improved product quality in electroplating and electrowinning operations
- Lower maintenance requirements and extended replacement intervals
- Versatility across multiple industries and applications
- Compliance with international standards for quality and safety
5. Product Application Industries
Our 【Platinum Plated Titanium Anodes】 find extensive use in various industries:
- Chlor-alkali Production: Essential for chlorine and caustic soda manufacturing
- Water Treatment: Efficient in electrochemical disinfection and pollutant removal
- Metal Electrowinning: Used in copper, zinc, and precious metal recovery
- Electroplating: Ensures high-quality metal coatings in jewelry and automotive industries
- Cathodic Protection: Protects marine structures and pipelines from corrosion
- Chemical Processing: Facilitates organic synthesis and electrooxidation reactions
- Semiconductor Manufacturing: Aids in precision etching and cleaning processes
- Energy Storage: Supports advanced battery and fuel cell technologies
Be used in a wide range of industries.
Chemical Processing
Marine Engineering
Medical Devices
Desalination Plants
Aerospace
Energy
Factory and Production Sites
 |  |  |  |  |
 |  |  |  |  |
6. Product Manufacturing Process
- Titanium Substrate Preparation: Cleaning and surface activation
- Platinum Electrodeposition: Precise coating of platinum layer
- Heat Treatment: Ensures strong adhesion of platinum to titanium
- Quality Inspection: Rigorous testing for coating thickness and uniformity
- Final Shaping: Customization according to client specifications
- Packaging: Secure packaging for safe transportation
7. OEM Service
Baoji Xintailai Metal Co., Ltd. offers comprehensive OEM services for 【Platinum Plated Titanium Anodes】:
- Custom designs to meet specific application requirements
- Tailored dimensions and shapes
- Adjustable platinum coating thickness
- Specialized surface treatments
- Collaborative R&D for innovative solutions
- Prototype development and testing support
8. FAQ
Q: What is the typical lifespan of a Platinum Plated Titanium Anode?
A: The lifespan varies depending on the application but generally ranges from 5 to 10 years with proper maintenance.
Q: Can these anodes be used in seawater applications?
A: Yes, our 【Platinum Plated Titanium Anodes】 are excellent for marine environments due to their corrosion resistance.
Q: How do I determine the right anode size for my application?
A: Our technical team can assist you in selecting the optimal size based on your specific process requirements.
Q: Are there any special handling or storage requirements?
A: While robust, care should be taken to avoid scratching the platinum surface. Store in a clean, dry environment.
9. Contact Us
Ready to elevate your electrochemical processes with our superior 【Platinum Plated Titanium Anodes】? Contact Baoji Xintailai Metal Co., Ltd. today for expert advice and quotations.
Tel & WhatsApp: +86-15319223116 / +8613335492266
Email: [email protected]
Address: Guojia Village Industrial Park, Maying Town, High-tech Development Zone, Baoji City, Shaanxi Province, China.
Experience the difference with our high-performance 【Platinum Plated Titanium Anodes】. Let's power your success together!
